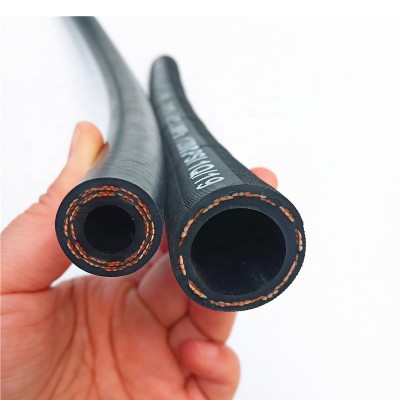

Textile Braid Smooth Hydraulic Hose EN 854 2TE
EN 854 2TE smooth hydraulic hose lines has good oil resistant, good anti-leakage, anti-aging, anti-corrosion. Factory price, high quality, worthy your buying.
Textile Braid Hydraulic Smooth Hydraulic Hose EN 854 2TE

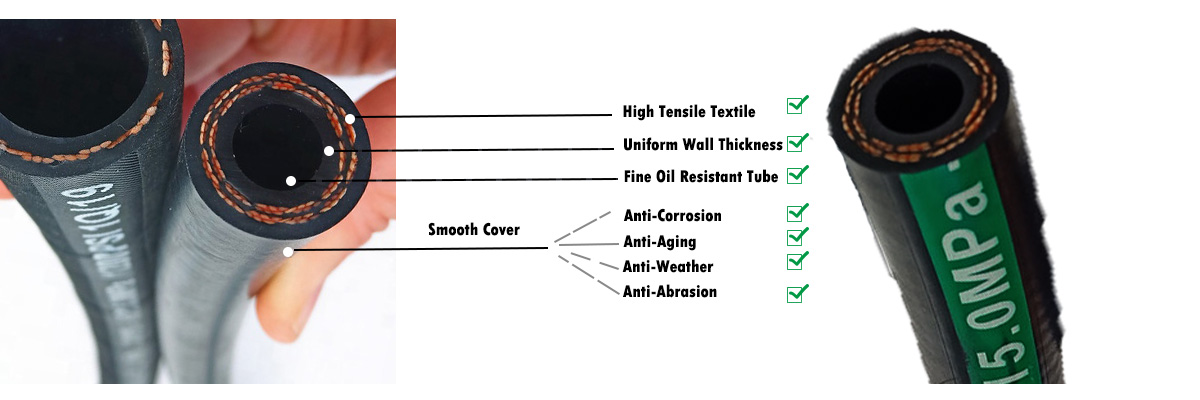

Pressure hydraulic hose EN 854 2TE is composed of three parts: inner tube, textile reinforcement and hose cover. EN 854 2TE inner tube is made from fine oil resistant rubber, widely used in delivering petroleum-based hydraulic oils. The reinforcement is made from two layers of high strength fibers, making EN 854 2TE good anti-leaking and anti-crack. The cover is made from high quality SBR synthetic rubber, super resistant to abrasion, corrosion, weather, ozone, aging,etc.
Textile Braid Smooth Hydraulic Hose EN 854 2TE Specification
| Model no. | HOSE SIZE I.D | I.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| EN 854 | DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m |
| 2TE | 5 | -3 | 3/16" | 4.8 | 11.8 | 80 | 1160 | 320 | 4640 | 35 | 0.12 |
| 2TE | 6 | -4 | 1/4" | 6.4 | 13.4 | 75 | 1087 | 300 | 4350 | 40 | 0.14 |
| 2TE | 8 | -5 | 5/16" | 7.9 | 14.9 | 68 | 986 | 272 | 3944 | 50 | 0.16 |
| 2TE | 10 | -6 | 3/8" | 9.5 | 16.4 | 63 | 913 | 252 | 3654 | 60 | 0.18 |
| 2TE | 12 | -8 | 1/2" | 12.7 | 19.8 | 58 | 841 | 232 | 3364 | 70 | 0.22 |
| 2TE | 16 | -10 | 5/8" | 15.9 | 23.8 | 50 | 725 | 200 | 2900 | 90 | 0.32 |
| 2TE | 19 | -12 | 3/4" | 19 | 26.9 | 45 | 652 | 180 | 2610 | 110 | 0.37 |
| 2TE | 25 | -16 | 1" | 25 | 34.5 | 40 | 580 | 160 | 2320 | 150 | 0.56 |
| 2TE | 32 | -20 | 1 1/4" | 31.8 | 41.4 | 35 | 508 | 140 | 2030 | 160 | 0.72 |
Textile Braid Smooth Hydraulic Hose EN 854 2TE Application
EN 854 2TE textile braided hydraulic hose is widely used in low pressure working conditions and it is suitable for petroleum-based hydraulic oils.
Textile Braid Smooth Hydraulic Hose EN 854 2TE Quality
- Exceed EN 854 2TE Standard
- 100% oil-resistant
- 4 Times Working Pressure Tes

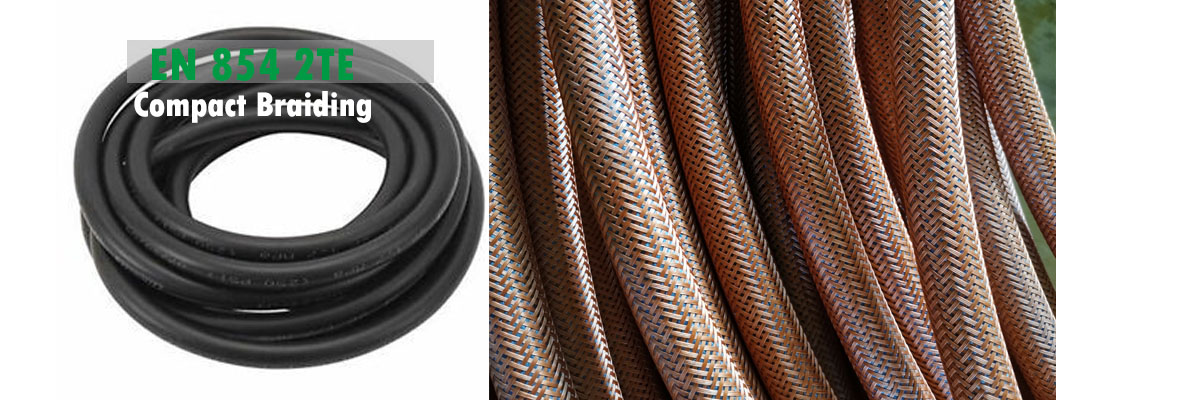

- Compact EN 854 2TE constructure
- Soft in Flexbility
- Fine were-resistant
- Anti-aging
- Uniform wall thickness
- Longer service life
- Anti-corrosion
- High strength
- Low maintenance
- CE, ISO, SGS, etc, quality guaranteed
Textile Braid Smooth Hydraulic Hose EN 854 2TE Packing
- Colorful nylon tape wrapped coils
- Transparent PVC sea worthy tape wrapped coils
- Plastic hose reels
- Wooden hose reels
- Pallets with hose coils
- Wooden case with hose coils
Textile Braid Smooth Hydraulic Hose EN 854 2TE Delivery Time
- Less than 2000 Meters EN 854 2TEwill delivery within 7 days
- Less than 10000 Meters will delivery within 15 days.
- 1-2 full containers will be delivery within 35 days.

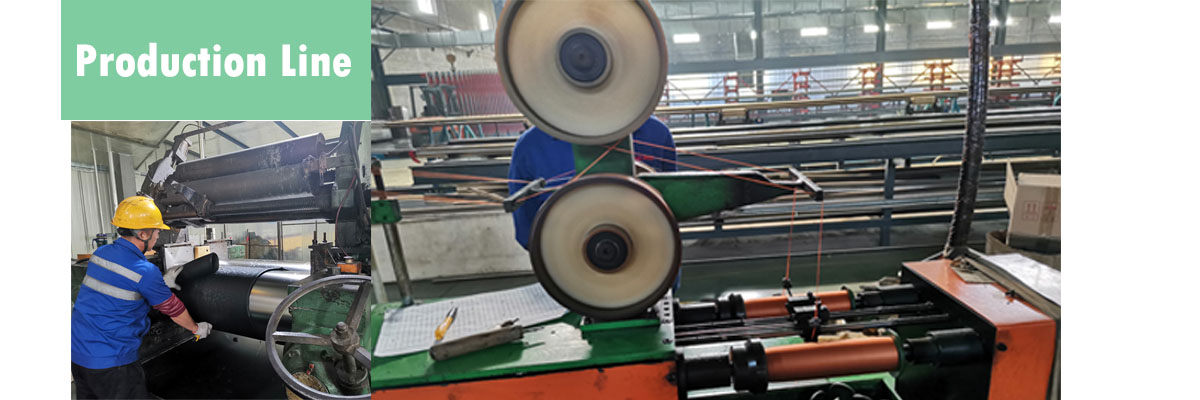

Textile Braid Smooth Hydraulic Hose EN 854 2TE Is In Production
Textile Braid Smooth Hydraulic Hose EN 854 2TE FAQ
Q: Do you provide EN 854 2TE hydraulic hose sample ? Is it free or extra ?
A: Yes, we could offer the sample for free but not pay the cost of shipping.
Q: What is your payment terms of EN 854 2TE ?
A: Amount<=3000USD, 100% in advance. Amount>=3000USD, 30% T/T in advance ,balance be paid before shipment.
If you have special request, pls freely contact us!
Q: Can you you OEM EN 854 2TE hydraulic hose brand ?
A: Yes, we can custom your brand freely, but MOQ is 5000M. You can mix other hydraulic hose models into your order.
- Hose Brand
- Evergood
- Product Name
- Hydraulic Hose
- Place of Origin
- China
- Material
- rubber
- Bulk Hydraulic Hose Discount
- Support
- Certification
- ISO, CE, MSHA, SGS
- Length Per Roll
- 50 FT/ 100 FT/ 200 FT/ 50M / 100 M
- Packing
- White, Blue, Yellow, Transparent , etc, seaworthy film
